2.9. 使用python-docx-template修改word文档¶
前面的介绍中我们使用python-docx库来创建word文档,但是对于文档的修改功能,还可以使用另一个库 python-docx-template可以完成对word的修改工作。
python-docx-template 模块主要依赖两个库, python-docx用于读取,编写和创建子文档 , jinja2用于管理插入到模板docx中的标签 。 其基本思路是利用jinja2制作Word模板,并动态向模板中插入文字、图片、表格等内容。
安装使用下面的命令:
pip install docxtpl
2.9.1. 使用 python-docx-template¶
首先创建一个word文档 test.docx,并设置好模板
这是一个模板:{{ template }}
在python中对设置的模板进行修改
>>> from docxtpl import DocxTemplate
>>> tpl = DocxTemplate('test.docx')
>>> context = {
>>> 'template': '123'
>>> }
>>> tpl.render(context)
>>> tpl.save('test1.docx')
打开生成的test1.doxc查看,文字已经被替换掉:
>>> from docx import Document
>>> dfile = Document('test1.docx')
>>> for para in dfile.paragraphs:
>>> print(para.text)
这是一个模板:123
2.9.2. 内嵌图片¶
可以动态地将一个或多个图像添加到文档中(已通过JPEG和PNG文件测试)。只需
{{ <var> }}
在模板中添加标记.
>>> dfile = Document('image.docx')
>>> for para in dfile.paragraphs:
>>> print(para.text)
这里插入一个图片:{{ myimage }}
>>> from docxtpl import InlineImage
>>> from docx.shared import Mm
>>> import jinja2
>>>
>>> tpl = DocxTemplate('image.docx')
>>> context = {
>>> 'myimage': InlineImage(tpl, 'img/img10.jpg', width=Mm(20)),
>>> }
>>> jinja_env = jinja2.Environment(autoescape=True)
>>> tpl.render(context, jinja_env)
>>> tpl.save('test2.docx')

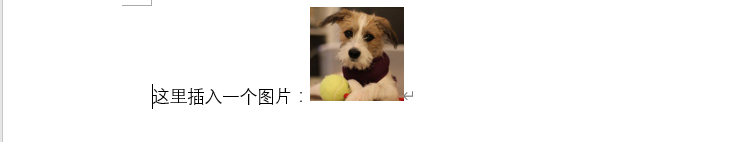

结果如下:
只需要指定模板对象,图像文件路径以及可选的宽度和/或高度。对于高度和宽度,必须使用毫米(Mm),英寸(Inches)或点(Pt)类。
2.9.3. 转义,换行符,新段落,清单¶
在 DOCX 文档中使用的 {{ }}
有特殊的意义,这意味着你不能使用所有字符,特别是 <
, >
和 &
。 为了使用它们,必须要对它们进行转义。有四种方法:
context =
{ 'var':R('my text') }和{{r <var> }}
模板(注意r
)context =
{ 'var':'my text'}并{{ <var>|e }}
在您的Word模板context =
{ 'var':escape('my text')}并{{ <var> }}
在模板中调用渲染方法时启用自动转义:(
tpl.render(context, autoescape=True
)默认值为autoescape = False
)
RichText()
或 R()
函数提供换行,新的段落,以及分页功能:
只需在文本中使用 \n
,\a
或 \f
,它们将作相应转换。
>>> context = {
>>> 'myvar': R(
>>> '"less than" must be escaped : <, this can be done with RichText() or R()'
>>> ),
>>> 'myescvar': 'It can be escaped with a "|e" jinja filter in the template too : < ',
>>> 'nlnp': R(
>>> 'Here is a multiple\nlines\nstring\aand some\aother\aparagraphs\aNOTE: the current character styling is removed'
>>> ),
>>> 'mylisting': Listing(
>>> 'the listing\nwith\nsome\nlines\nand special chars : <>&\f ... and a page break'
>>> ),
>>> 'page_break': R('\f'),
>>> }
2.9.4. 替换图片¶
无法在页眉/页脚中动态添加图像,但可以更改它们。这个想法是在模板中放置一个虚拟图片,照常渲染模板,然后用另一张替换该虚拟图片。可以同时对所有媒体执行此操作。注意:长宽比将与替换后的图像相同。指定用于在docx模板中插入图像的文件名(仅其基名,而不是完整路径)
方法
tpl.replace_pic('old','new')
我们就上次插入的图片进行替换。
>>> t = DocxTemplate('escape.docx')
>>> context = {}
>>> t.replace_pic('img10.jpg', 'img/aaa.jpg')
>>> t.render(context)
>>> t.save('text3.docx')
替换时文件的后缀要相同,否则会发生错误。
