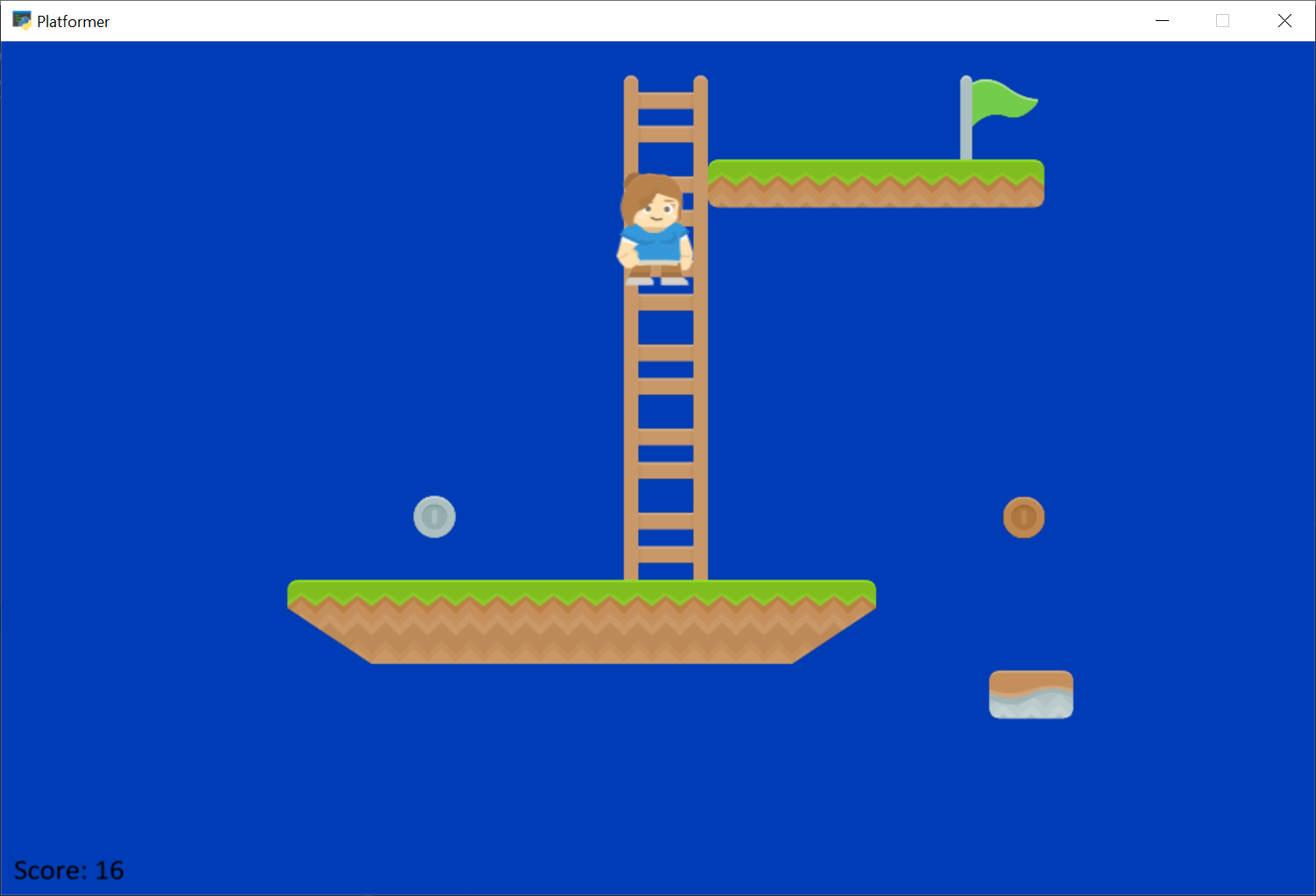

第11步-添加梯子、属性和移动平台#

../../_images/11_ladders_and_more.png

此示例显示了如何使用：

  • 梯子

  • 用于定义硬币和旗帜点值的属性

  • 属性和对象层来定义移动平台。

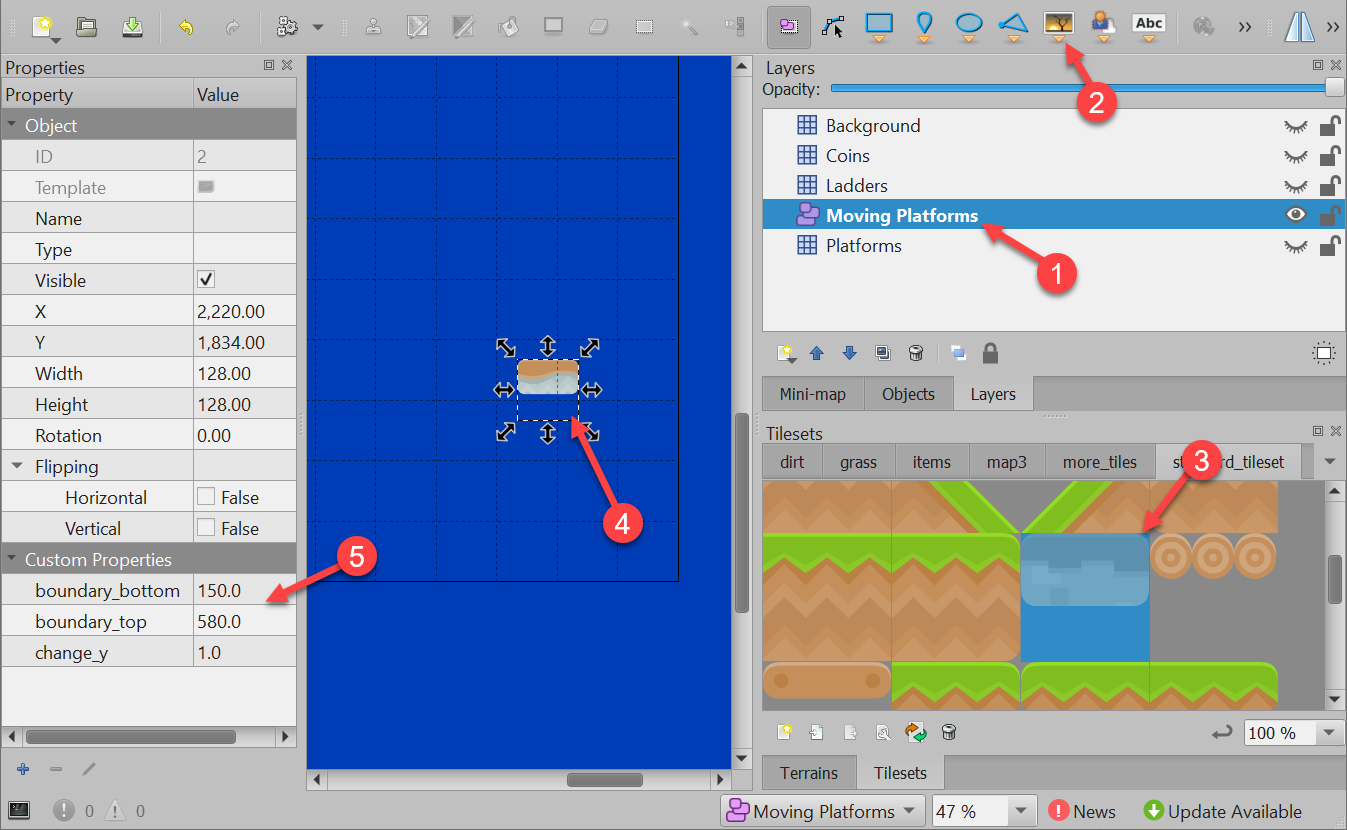

要使用TMX编辑器创建移动平台，有几个步骤：

  1. 定义一个 对象层 而不是瓷砖层。

  2. 选择 插入平铺

  3. 选择要插入的磁贴。

  4. 放置瓷砖。

  5. 添加自定义属性。您可以添加：

  • change_x

  • change_y

  • boundary_bottom

  • boundary_top

  • boundary_left

  • boundary_right

../../_images/moving_platform_setup.png
梯子、动画瓷砖和移动平台#
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
"""
Platformer Game
"""
import os

import arcade

# Constants
SCREEN_WIDTH = 1000
SCREEN_HEIGHT = 650
SCREEN_TITLE = "Platformer"

# Constants used to scale our sprites from their original size
CHARACTER_SCALING = 1
TILE_SCALING = 0.5
COIN_SCALING = 0.5
SPRITE_PIXEL_SIZE = 128
GRID_PIXEL_SIZE = SPRITE_PIXEL_SIZE * TILE_SCALING

# Movement speed of player, in pixels per frame
PLAYER_MOVEMENT_SPEED = 7
GRAVITY = 1.5
PLAYER_JUMP_SPEED = 30

PLAYER_START_X = 64
PLAYER_START_Y = 256

# Layer Names from our TileMap
LAYER_NAME_MOVING_PLATFORMS = "Moving Platforms"
LAYER_NAME_PLATFORMS = "Platforms"
LAYER_NAME_COINS = "Coins"
LAYER_NAME_BACKGROUND = "Background"
LAYER_NAME_LADDERS = "Ladders"


class MyGame(arcade.Window):
    """
    Main application class.
    """

    def __init__(self):
        """
        Initializer for the game
        """

        # Call the parent class and set up the window
        super().__init__(SCREEN_WIDTH, SCREEN_HEIGHT, SCREEN_TITLE)

        # Set the path to start with this program
        file_path = os.path.dirname(os.path.abspath(__file__))
        os.chdir(file_path)

        # Our TileMap Object
        self.tile_map = None

        # Our Scene Object
        self.scene = None

        # Separate variable that holds the player sprite
        self.player_sprite = None

        # Our 'physics' engine
        self.physics_engine = None

        # A Camera that can be used for scrolling the screen
        self.camera = None

        # A Camera that can be used to draw GUI elements
        self.gui_camera = None

        self.end_of_map = 0

        # Keep track of the score
        self.score = 0

        # Load sounds
        self.collect_coin_sound = arcade.load_sound(":resources:sounds/coin1.wav")
        self.jump_sound = arcade.load_sound(":resources:sounds/jump1.wav")
        self.game_over = arcade.load_sound(":resources:sounds/gameover1.wav")

    def setup(self):
        """Set up the game here. Call this function to restart the game."""

        # Set up the Cameras
        self.camera = arcade.Camera(self.width, self.height)
        self.gui_camera = arcade.Camera(self.width, self.height)

        # Map name
        map_name = ":resources:tiled_maps/map_with_ladders.json"

        # Layer Specific Options for the Tilemap
        layer_options = {
            LAYER_NAME_PLATFORMS: {
                "use_spatial_hash": True,
            },
            LAYER_NAME_MOVING_PLATFORMS: {
                "use_spatial_hash": False,
            },
            LAYER_NAME_LADDERS: {
                "use_spatial_hash": True,
            },
            LAYER_NAME_COINS: {
                "use_spatial_hash": True,
            },
        }

        # Load in TileMap
        self.tile_map = arcade.load_tilemap(map_name, TILE_SCALING, layer_options)

        # Initiate New Scene with our TileMap, this will automatically add all layers
        # from the map as SpriteLists in the scene in the proper order.
        self.scene = arcade.Scene.from_tilemap(self.tile_map)

        # Keep track of the score
        self.score = 0

        # Set up the player, specifically placing it at these coordinates.
        image_source = ":resources:images/animated_characters/female_adventurer/femaleAdventurer_idle.png"
        self.player_sprite = arcade.Sprite(image_source, CHARACTER_SCALING)
        self.player_sprite.center_x = PLAYER_START_X
        self.player_sprite.center_y = PLAYER_START_Y
        self.scene.add_sprite("Player", self.player_sprite)

        # Calculate the right edge of the my_map in pixels
        self.end_of_map = self.tile_map.width * GRID_PIXEL_SIZE

        # --- Other stuff
        # Set the background color
        if self.tile_map.background_color:
            arcade.set_background_color(self.tile_map.background_color)

        # Create the 'physics engine'
        self.physics_engine = arcade.PhysicsEnginePlatformer(
            self.player_sprite,
            platforms=self.scene[LAYER_NAME_MOVING_PLATFORMS],
            gravity_constant=GRAVITY,
            ladders=self.scene[LAYER_NAME_LADDERS],
            walls=self.scene[LAYER_NAME_PLATFORMS]
        )

    def on_draw(self):
        """Render the screen."""
        # Clear the screen to the background color
        self.clear()

        # Activate the game camera
        self.camera.use()

        # Draw our Scene
        self.scene.draw()

        # Activate the GUI camera before drawing GUI elements
        self.gui_camera.use()

        # Draw our score on the screen, scrolling it with the viewport
        score_text = f"Score: {self.score}"
        arcade.draw_text(
            score_text,
            10,
            10,
            arcade.csscolor.BLACK,
            18,
        )

    def on_key_press(self, key, modifiers):
        """Called whenever a key is pressed."""

        if key == arcade.key.UP or key == arcade.key.W:
            if self.physics_engine.is_on_ladder():
                self.player_sprite.change_y = PLAYER_MOVEMENT_SPEED
            elif self.physics_engine.can_jump():
                self.player_sprite.change_y = PLAYER_JUMP_SPEED
                arcade.play_sound(self.jump_sound)
        elif key == arcade.key.DOWN or key == arcade.key.S:
            if self.physics_engine.is_on_ladder():
                self.player_sprite.change_y = -PLAYER_MOVEMENT_SPEED
        elif key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = -PLAYER_MOVEMENT_SPEED
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = PLAYER_MOVEMENT_SPEED

    def on_key_release(self, key, modifiers):
        """Called when the user releases a key."""

        if key == arcade.key.UP or key == arcade.key.W:
            if self.physics_engine.is_on_ladder():
                self.player_sprite.change_y = 0
        elif key == arcade.key.DOWN or key == arcade.key.S:
            if self.physics_engine.is_on_ladder():
                self.player_sprite.change_y = 0
        elif key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = 0
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = 0

    def center_camera_to_player(self):
        screen_center_x = self.player_sprite.center_x - (self.camera.viewport_width / 2)
        screen_center_y = self.player_sprite.center_y - (
            self.camera.viewport_height / 2
        )
        if screen_center_x < 0:
            screen_center_x = 0
        if screen_center_y < 0:
            screen_center_y = 0
        player_centered = screen_center_x, screen_center_y

        self.camera.move_to(player_centered, 0.2)

    def update(self, delta_time):
        """Movement and game logic"""
        # Move the player with the physics engine
        self.physics_engine.update()

        # Update animations
        self.scene.update_animation(
            delta_time, [LAYER_NAME_COINS, LAYER_NAME_BACKGROUND]
        )

        # Update walls, used with moving platforms
        self.scene.update([LAYER_NAME_MOVING_PLATFORMS])

        # See if we hit any coins
        coin_hit_list = arcade.check_for_collision_with_list(
            self.player_sprite, self.scene[LAYER_NAME_COINS]
        )

        # Loop through each coin we hit (if any) and remove it
        for coin in coin_hit_list:

            # Figure out how many points this coin is worth
            if "Points" not in coin.properties:
                print("Warning, collected a coin without a Points property.")
            else:
                points = int(coin.properties["Points"])
                self.score += points

            # Remove the coin
            coin.remove_from_sprite_lists()
            arcade.play_sound(self.collect_coin_sound)

        # Position the camera
        self.center_camera_to_player()


def main():
    """Main function"""
    window = MyGame()
    window.setup()
    arcade.run()


if __name__ == "__main__":
    main()

源代码#

梯子和更多#
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
"""
Platformer Game
"""
import os

import arcade

# Constants
SCREEN_WIDTH = 1000
SCREEN_HEIGHT = 650
SCREEN_TITLE = "Platformer"

# Constants used to scale our sprites from their original size
CHARACTER_SCALING = 1
TILE_SCALING = 0.5
COIN_SCALING = 0.5
SPRITE_PIXEL_SIZE = 128
GRID_PIXEL_SIZE = SPRITE_PIXEL_SIZE * TILE_SCALING

# Movement speed of player, in pixels per frame
PLAYER_MOVEMENT_SPEED = 7
GRAVITY = 1.5
PLAYER_JUMP_SPEED = 30

PLAYER_START_X = 64
PLAYER_START_Y = 256

# Layer Names from our TileMap
LAYER_NAME_MOVING_PLATFORMS = "Moving Platforms"
LAYER_NAME_PLATFORMS = "Platforms"
LAYER_NAME_COINS = "Coins"
LAYER_NAME_BACKGROUND = "Background"
LAYER_NAME_LADDERS = "Ladders"


class MyGame(arcade.Window):
    """
    Main application class.
    """

    def __init__(self):
        """
        Initializer for the game
        """

        # Call the parent class and set up the window
        super().__init__(SCREEN_WIDTH, SCREEN_HEIGHT, SCREEN_TITLE)

        # Set the path to start with this program
        file_path = os.path.dirname(os.path.abspath(__file__))
        os.chdir(file_path)

        # Our TileMap Object
        self.tile_map = None

        # Our Scene Object
        self.scene = None

        # Separate variable that holds the player sprite
        self.player_sprite = None

        # Our 'physics' engine
        self.physics_engine = None

        # A Camera that can be used for scrolling the screen
        self.camera = None

        # A Camera that can be used to draw GUI elements
        self.gui_camera = None

        self.end_of_map = 0

        # Keep track of the score
        self.score = 0

        # Load sounds
        self.collect_coin_sound = arcade.load_sound(":resources:sounds/coin1.wav")
        self.jump_sound = arcade.load_sound(":resources:sounds/jump1.wav")
        self.game_over = arcade.load_sound(":resources:sounds/gameover1.wav")

    def setup(self):
        """Set up the game here. Call this function to restart the game."""

        # Set up the Cameras
        self.camera = arcade.Camera(self.width, self.height)
        self.gui_camera = arcade.Camera(self.width, self.height)

        # Map name
        map_name = ":resources:tiled_maps/map_with_ladders.json"

        # Layer Specific Options for the Tilemap
        layer_options = {
            LAYER_NAME_PLATFORMS: {
                "use_spatial_hash": True,
            },
            LAYER_NAME_MOVING_PLATFORMS: {
                "use_spatial_hash": False,
            },
            LAYER_NAME_LADDERS: {
                "use_spatial_hash": True,
            },
            LAYER_NAME_COINS: {
                "use_spatial_hash": True,
            },
        }

        # Load in TileMap
        self.tile_map = arcade.load_tilemap(map_name, TILE_SCALING, layer_options)

        # Initiate New Scene with our TileMap, this will automatically add all layers
        # from the map as SpriteLists in the scene in the proper order.
        self.scene = arcade.Scene.from_tilemap(self.tile_map)

        # Keep track of the score
        self.score = 0

        # Set up the player, specifically placing it at these coordinates.
        image_source = ":resources:images/animated_characters/female_adventurer/femaleAdventurer_idle.png"
        self.player_sprite = arcade.Sprite(image_source, CHARACTER_SCALING)
        self.player_sprite.center_x = PLAYER_START_X
        self.player_sprite.center_y = PLAYER_START_Y
        self.scene.add_sprite("Player", self.player_sprite)

        # Calculate the right edge of the my_map in pixels
        self.end_of_map = self.tile_map.width * GRID_PIXEL_SIZE

        # --- Other stuff
        # Set the background color
        if self.tile_map.background_color:
            arcade.set_background_color(self.tile_map.background_color)

        # Create the 'physics engine'
        self.physics_engine = arcade.PhysicsEnginePlatformer(
            self.player_sprite,
            platforms=self.scene[LAYER_NAME_MOVING_PLATFORMS],
            gravity_constant=GRAVITY,
            ladders=self.scene[LAYER_NAME_LADDERS],
            walls=self.scene[LAYER_NAME_PLATFORMS]
        )

    def on_draw(self):
        """Render the screen."""
        # Clear the screen to the background color
        self.clear()

        # Activate the game camera
        self.camera.use()

        # Draw our Scene
        self.scene.draw()

        # Activate the GUI camera before drawing GUI elements
        self.gui_camera.use()

        # Draw our score on the screen, scrolling it with the viewport
        score_text = f"Score: {self.score}"
        arcade.draw_text(
            score_text,
            10,
            10,
            arcade.csscolor.BLACK,
            18,
        )

    def on_key_press(self, key, modifiers):
        """Called whenever a key is pressed."""

        if key == arcade.key.UP or key == arcade.key.W:
            if self.physics_engine.is_on_ladder():
                self.player_sprite.change_y = PLAYER_MOVEMENT_SPEED
            elif self.physics_engine.can_jump():
                self.player_sprite.change_y = PLAYER_JUMP_SPEED
                arcade.play_sound(self.jump_sound)
        elif key == arcade.key.DOWN or key == arcade.key.S:
            if self.physics_engine.is_on_ladder():
                self.player_sprite.change_y = -PLAYER_MOVEMENT_SPEED
        elif key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = -PLAYER_MOVEMENT_SPEED
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = PLAYER_MOVEMENT_SPEED

    def on_key_release(self, key, modifiers):
        """Called when the user releases a key."""

        if key == arcade.key.UP or key == arcade.key.W:
            if self.physics_engine.is_on_ladder():
                self.player_sprite.change_y = 0
        elif key == arcade.key.DOWN or key == arcade.key.S:
            if self.physics_engine.is_on_ladder():
                self.player_sprite.change_y = 0
        elif key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = 0
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = 0

    def center_camera_to_player(self):
        screen_center_x = self.player_sprite.center_x - (self.camera.viewport_width / 2)
        screen_center_y = self.player_sprite.center_y - (
            self.camera.viewport_height / 2
        )
        if screen_center_x < 0:
            screen_center_x = 0
        if screen_center_y < 0:
            screen_center_y = 0
        player_centered = screen_center_x, screen_center_y

        self.camera.move_to(player_centered, 0.2)

    def update(self, delta_time):
        """Movement and game logic"""
        # Move the player with the physics engine
        self.physics_engine.update()

        # Update animations
        self.scene.update_animation(
            delta_time, [LAYER_NAME_COINS, LAYER_NAME_BACKGROUND]
        )

        # Update walls, used with moving platforms
        self.scene.update([LAYER_NAME_MOVING_PLATFORMS])

        # See if we hit any coins
        coin_hit_list = arcade.check_for_collision_with_list(
            self.player_sprite, self.scene[LAYER_NAME_COINS]
        )

        # Loop through each coin we hit (if any) and remove it
        for coin in coin_hit_list:

            # Figure out how many points this coin is worth
            if "Points" not in coin.properties:
                print("Warning, collected a coin without a Points property.")
            else:
                points = int(coin.properties["Points"])
                self.score += points

            # Remove the coin
            coin.remove_from_sprite_lists()
            arcade.play_sound(self.collect_coin_sound)

        # Position the camera
        self.center_camera_to_player()


def main():
    """Main function"""
    window = MyGame()
    window.setup()
    arcade.run()


if __name__ == "__main__":
    main()
