旋转极箱

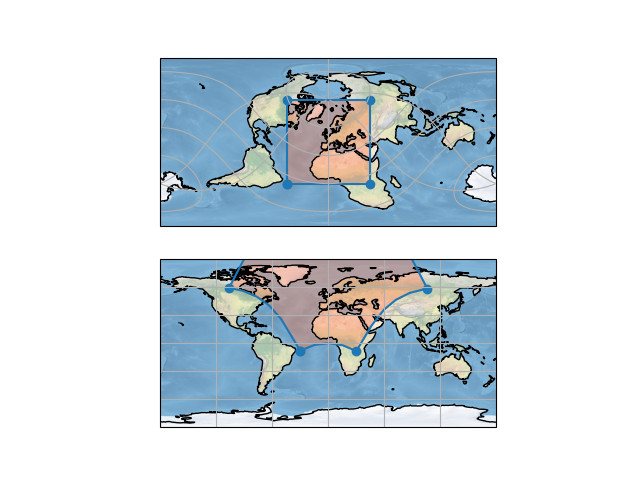

演示了在旋转极点坐标系中定义盒子时如何弯曲。

尝试更改 box_top 到 44 , 46 和 75 以查看将极点包含在多边形中的效果。

import matplotlib.pyplot as plt

import cartopy.crs as ccrs


def main():
    rotated_pole = ccrs.RotatedPole(pole_latitude=45, pole_longitude=180)

    box_top = 45
    x, y = [-44, -44, 45, 45, -44], [-45, box_top, box_top, -45, -45]

    fig = plt.figure()

    ax = fig.add_subplot(2, 1, 1, projection=rotated_pole)
    ax.stock_img()
    ax.coastlines()
    ax.plot(x, y, marker='o', transform=rotated_pole)
    ax.fill(x, y, color='coral', transform=rotated_pole, alpha=0.4)
    ax.gridlines()

    ax = fig.add_subplot(2, 1, 2, projection=ccrs.PlateCarree())
    ax.stock_img()
    ax.coastlines()
    ax.plot(x, y, marker='o', transform=rotated_pole)
    ax.fill(x, y, transform=rotated_pole, color='coral', alpha=0.4)
    ax.gridlines()

    plt.show()


if __name__ == '__main__':
    main()
