反图#

在处理密集图时,对小内存占用进行补充图类。

此类允许您添加 不存在 在稠密图中。然而,当将算法应用于这个补码图数据结构时,它的行为就好像它是稠密的版本。因此,它可以直接用于几种NetworkX算法中。

这个子类只针对k-core、connected_components和biconnected_components算法进行了测试,但也可能适用于其他算法。

plot antigraph
import matplotlib.pyplot as plt
import networkx as nx
from networkx import Graph


class AntiGraph(Graph):
    """
    Class for complement graphs.

    The main goal is to be able to work with big and dense graphs with
    a low memory footprint.

    In this class you add the edges that *do not exist* in the dense graph,
    the report methods of the class return the neighbors, the edges and
    the degree as if it was the dense graph. Thus it's possible to use
    an instance of this class with some of NetworkX functions.
    """

    all_edge_dict = {"weight": 1}

    def single_edge_dict(self):
        return self.all_edge_dict

    edge_attr_dict_factory = single_edge_dict

    def __getitem__(self, n):
        """Return a dict of neighbors of node n in the dense graph.

        Parameters
        ----------
        n : node
           A node in the graph.

        Returns
        -------
        adj_dict : dictionary
           The adjacency dictionary for nodes connected to n.

        """
        return {
            node: self.all_edge_dict for node in set(self.adj) - set(self.adj[n]) - {n}
        }

    def neighbors(self, n):
        """Return an iterator over all neighbors of node n in the
        dense graph.

        """
        try:
            return iter(set(self.adj) - set(self.adj[n]) - {n})
        except KeyError as err:
            raise nx.NetworkXError(f"The node {n} is not in the graph.") from err

    def degree(self, nbunch=None, weight=None):
        """Return an iterator for (node, degree) in the dense graph.

        The node degree is the number of edges adjacent to the node.

        Parameters
        ----------
        nbunch : iterable container, optional (default=all nodes)
            A container of nodes.  The container will be iterated
            through once.

        weight : string or None, optional (default=None)
           The edge attribute that holds the numerical value used
           as a weight.  If None, then each edge has weight 1.
           The degree is the sum of the edge weights adjacent to the node.

        Returns
        -------
        nd_iter : iterator
            The iterator returns two-tuples of (node, degree).

        See Also
        --------
        degree

        Examples
        --------
        >>> G = nx.path_graph(4)  # or DiGraph, MultiGraph, MultiDiGraph, etc
        >>> G.degree(0)  # node 0 with degree 1
        1
        >>> list(G.degree([0, 1]))
        [(0, 1), (1, 2)]

        """
        if nbunch is None:
            nodes_nbrs = (
                (
                    n,
                    {
                        v: self.all_edge_dict
                        for v in set(self.adj) - set(self.adj[n]) - {n}
                    },
                )
                for n in self.nodes()
            )
        elif nbunch in self:
            nbrs = set(self.nodes()) - set(self.adj[nbunch]) - {nbunch}
            return len(nbrs)
        else:
            nodes_nbrs = (
                (
                    n,
                    {
                        v: self.all_edge_dict
                        for v in set(self.nodes()) - set(self.adj[n]) - {n}
                    },
                )
                for n in self.nbunch_iter(nbunch)
            )

        if weight is None:
            return ((n, len(nbrs)) for n, nbrs in nodes_nbrs)
        else:
            # AntiGraph is a ThinGraph so all edges have weight 1
            return (
                (n, sum((nbrs[nbr].get(weight, 1)) for nbr in nbrs))
                for n, nbrs in nodes_nbrs
            )

    def adjacency(self):
        """Return an iterator of (node, adjacency set) tuples for all nodes
           in the dense graph.

        This is the fastest way to look at every edge.
        For directed graphs, only outgoing adjacencies are included.

        Returns
        -------
        adj_iter : iterator
           An iterator of (node, adjacency set) for all nodes in
           the graph.
        """
        nodes = set(self.adj)
        for n, nbrs in self.adj.items():
            yield (n, nodes - set(nbrs) - {n})


# Build several pairs of graphs, a regular graph
# and the AntiGraph of it's complement, which behaves
# as if it were the original graph.
Gnp = nx.gnp_random_graph(20, 0.8, seed=42)
Anp = AntiGraph(nx.complement(Gnp))
Gd = nx.davis_southern_women_graph()
Ad = AntiGraph(nx.complement(Gd))
Gk = nx.karate_club_graph()
Ak = AntiGraph(nx.complement(Gk))
pairs = [(Gnp, Anp), (Gd, Ad), (Gk, Ak)]
# test connected components
for G, A in pairs:
    gc = [set(c) for c in nx.connected_components(G)]
    ac = [set(c) for c in nx.connected_components(A)]
    for comp in ac:
        assert comp in gc
# test biconnected components
for G, A in pairs:
    gc = [set(c) for c in nx.biconnected_components(G)]
    ac = [set(c) for c in nx.biconnected_components(A)]
    for comp in ac:
        assert comp in gc
# test degree
for G, A in pairs:
    node = list(G.nodes())[0]
    nodes = list(G.nodes())[1:4]
    assert G.degree(node) == A.degree(node)
    assert sum(d for n, d in G.degree()) == sum(d for n, d in A.degree())
    # AntiGraph is a ThinGraph, so all the weights are 1
    assert sum(d for n, d in A.degree()) == sum(d for n, d in A.degree(weight="weight"))
    assert sum(d for n, d in G.degree(nodes)) == sum(d for n, d in A.degree(nodes))

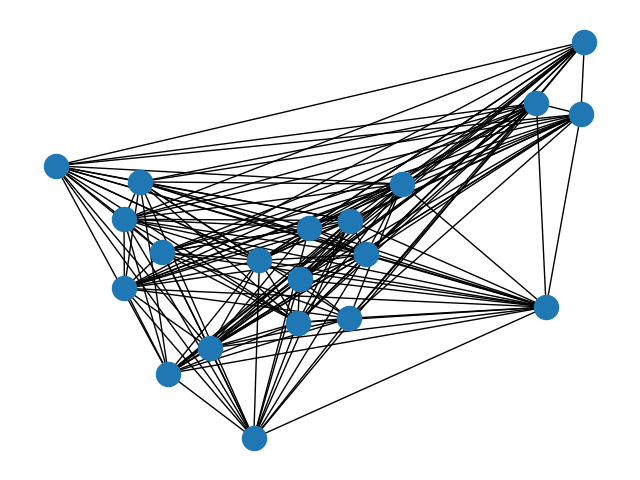

pos = nx.spring_layout(G, seed=268)  # Seed for reproducible layout
nx.draw(Gnp, pos=pos)
plt.show()

Total running time of the script: ( 0 minutes 0.077 seconds)
