scipy.special.diric¶
- scipy.special.diric(x, n)[源代码]¶
周期sinc函数,也称为Dirichlet函数。
Dirichlet函数定义为::
diric(x, n) = sin(x * n/2) / (n * sin(x / 2)),
哪里 n 是正整数。
- 参数
- xarray_like
输入数据
- n集成
定义周期的整数。
- 退货
- diricndarray
示例
>>> from scipy import special >>> import matplotlib.pyplot as plt

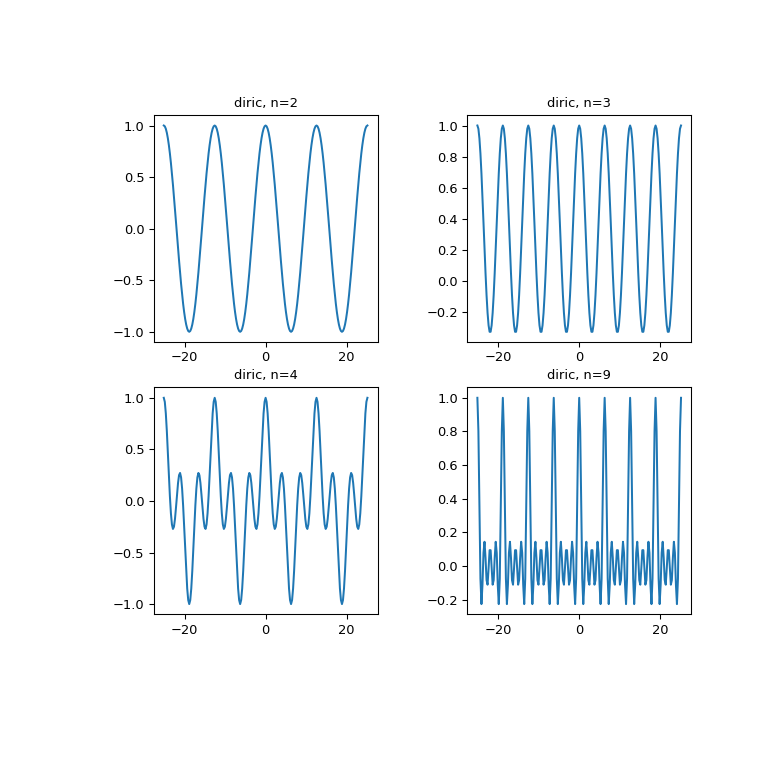

>>> x = np.linspace(-8*np.pi, 8*np.pi, num=201) >>> plt.figure(figsize=(8, 8)); >>> for idx, n in enumerate([2, 3, 4, 9]): ... plt.subplot(2, 2, idx+1) ... plt.plot(x, special.diric(x, n)) ... plt.title('diric, n={}'.format(n)) >>> plt.show()
下面的示例演示了
diric
给出矩形脉冲的傅里叶系数的幅度(对符号和比例取模)。禁止输出有效值为0的值:
>>> np.set_printoptions(suppress=True)
创建信号 x 长度的 m 使用 k 其中几个:
>>> m = 8 >>> k = 3 >>> x = np.zeros(m) >>> x[:k] = 1
用快速傅立叶变换计算的傅里叶变换 x ,并检查系数的大小:
>>> np.abs(np.fft.fft(x)) array([ 3. , 2.41421356, 1. , 0.41421356, 1. , 0.41421356, 1. , 2.41421356])
现在使用以下命令查找相同的值(最高可达SIGN)
diric
。我们乘以 k 要说明不同的缩放约定,请执行以下操作numpy.fft.fft
和diric
:>>> theta = np.linspace(0, 2*np.pi, m, endpoint=False) >>> k * special.diric(theta, k) array([ 3. , 2.41421356, 1. , -0.41421356, -1. , -0.41421356, 1. , 2.41421356])
