scipy.cluster.hierarchy.leaves_list¶
- scipy.cluster.hierarchy.leaves_list(Z)[源代码]¶
返回叶节点ID列表。
返回对应于从左到右出现在树中的观测矢量索引。Z是链接矩阵。
- 参数
- Zndarray
分层聚类被编码为矩阵。 Z 是一个链接矩阵。看见
linkage
了解更多信息。
- 退货
- leaves_listndarray
叶节点ID列表。
参见
dendrogram
有关树状图结构的信息,请参阅。
示例
>>> from scipy.cluster.hierarchy import ward, dendrogram, leaves_list >>> from scipy.spatial.distance import pdist >>> from matplotlib import pyplot as plt
>>> X = [[0, 0], [0, 1], [1, 0], ... [0, 4], [0, 3], [1, 4], ... [4, 0], [3, 0], [4, 1], ... [4, 4], [3, 4], [4, 3]]
>>> Z = ward(pdist(X))
链接矩阵
Z
表示树状图,即对执行的群集的结构进行编码的树。scipy.cluster.hierarchy.leaves_list
中的索引之间的映射。X
树状图中的数据集和树叶:>>> leaves_list(Z) array([ 2, 0, 1, 5, 3, 4, 8, 6, 7, 11, 9, 10], dtype=int32)

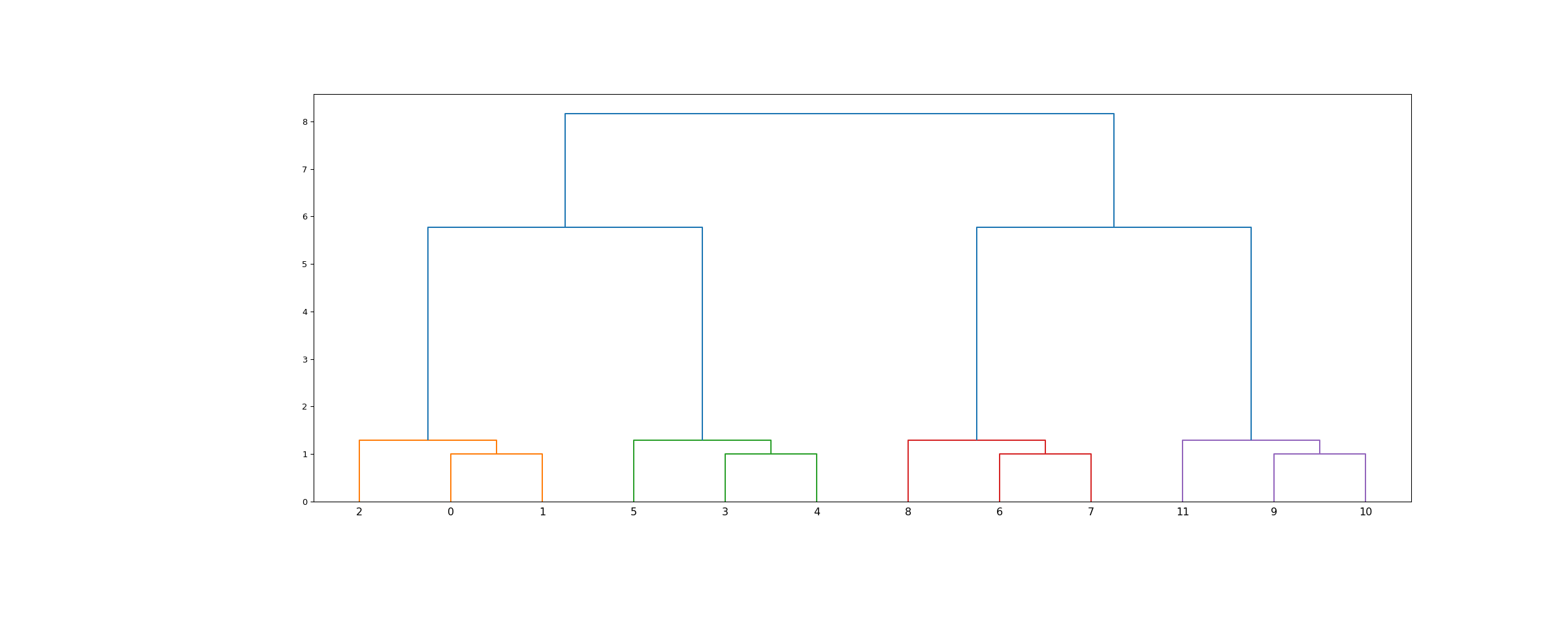

>>> fig = plt.figure(figsize=(25, 10)) >>> dn = dendrogram(Z) >>> plt.show()
