贝塞尔曲线

这个例子展示了 PathPatch 对象创建Bezier多曲线路径修补程序。

import matplotlib.path as mpath
import matplotlib.patches as mpatches
import matplotlib.pyplot as plt

Path = mpath.Path

fig, ax = plt.subplots()
pp1 = mpatches.PathPatch(
    Path([(0, 0), (1, 0), (1, 1), (0, 0)],
         [Path.MOVETO, Path.CURVE3, Path.CURVE3, Path.CLOSEPOLY]),
    fc="none", transform=ax.transData)

ax.add_patch(pp1)
ax.plot([0.75], [0.25], "ro")

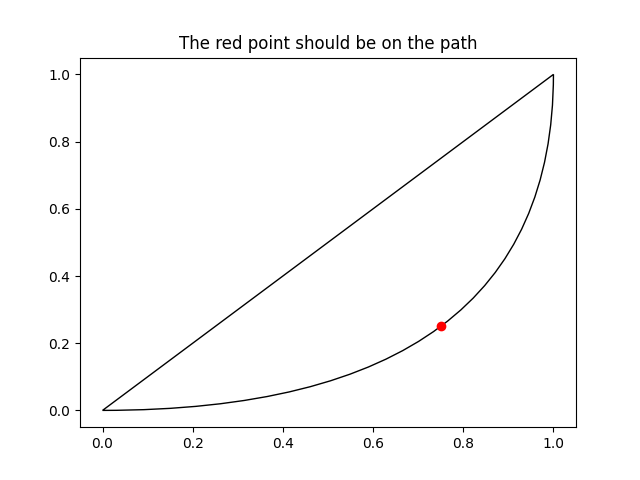

ax.set_title('The red point should be on the path')

plt.show()

---

工具书类

以下函数、方法、类和模块的使用如本例所示：

import matplotlib
matplotlib.path
matplotlib.path.Path
matplotlib.patches
matplotlib.patches.PathPatch
matplotlib.axes.Axes.add_patch

出：

<function _AxesBase.add_patch at 0x7faa00da4158>
