5.6. mbstyle工作簿结论¶
我们希望您喜欢这个造型车间。
其他资源:
5.6.1. mbstyle提示和技巧¶
5.6.2. mbstyle研讨会答案键¶
在整个讲习班中列出了以下问题,以此作为更深入探讨材料的机会。在查看这里的答案之前,请尽量仔细考虑这些问题。提供问题以教授有价值的技能,例如有机会了解如何使用要素类型样式来控制z顺序,或在用户手册中的何处查找信息。
备注
马上就来
5.6.2.1. 分类¶
挑战: 创建新样式根据 type .
提示:可用值为“主要公路”、“次要公路”、“道路”和“未知”。
下面是一个例子:
{ "version": 8, "name": "line_example", "layers": [ { "id": "line_hwy1", "source-layer": "ne:roads", "type": "line", "filter": ["==", "type", "Major Highway"], "paint": { "line-color": "#000088", "line-width": 1.25, "line-opacity": 0.25 } }, { "id": "line_hwy2", "source-layer": "ne:roads", "type": "line", "filter": ["==", "type", "Secondary Highway"], "paint": { "line-color": "#8888AA", "line-width": 0.75, "line-opacity": 0.25 } }, { "id": "line_road", "source-layer": "ne:roads", "type": "line", "filter": ["==", "type", "Road"], "paint": { "line-color": "#888888", "line-width": 0.75, "line-opacity": 0.25 } }, { "id": "line_unk", "source-layer": "ne:roads", "type": "line", "filter": ["==", "type", "Unknown"], "paint": { "line-color": "#888888", "line-width": 0.5, "line-opacity": 0.25 } } ] }
5.6.2.2. 一条规则分类¶
回答 Challenge One Rule Classification :
挑战: 创建一个新样式,并根据道路的比例等级,在单个规则中使用表达式对道路进行分类,而不是使用过滤器对多个规则进行分类。
本练习需要在MBStyle用户指南中查找信息。
地图盒样式规范 functions 提供详细信息。
5.6.2.3. 标签屏蔽¶

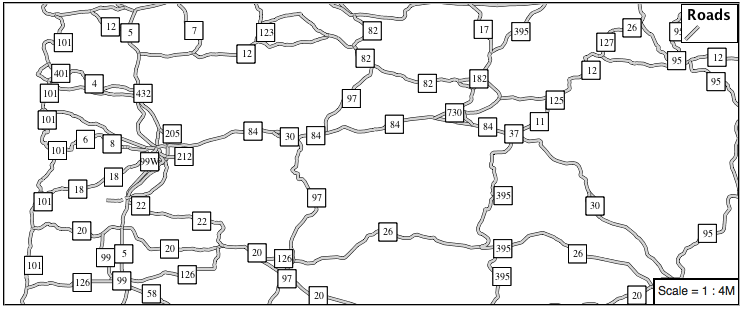

挑战: 请看一看在SLD中文本符号上放置图形的文档,并用mbstyle复制此技术。
标签屏蔽的使用是geoserver呈现引擎的特定于供应商的功能。本练习的难点在于找出哪些符号布局参数提供了所需的行为,主要是 icon-text-fit 以及允许在标签上绘制文本的各种放置和重叠参数(请参见 symbol layer )
{ "version": 8, "name": "line_example", "sprite": "http://localhost:8080/geoserver/styles/sprites", "layers": [ { "id": "line_casing", "source-layer": "ne:roads", "type": "line", "paint": { "line-color": "#000000", "line-width": 3, } }, { "id": "line_inner", "source-layer": "ne:roads", "type": "line", "paint": { "line-color": "#D3D3D3", "line-width": 2, } }, { "id": "label", "source-layer": "ne:roads", "type": "symbol", "layout": { "icon-image": "white_square16", "icon-text-fit": "width", "icon-text-fit-padding": [2, 2, 2, 2], "text-field": "{name}", "text-font": ["Ariel"], "text-font-size": 10, "text-ignore-placement": true, "text-allow-overlap": true, "icon-ignore-placement": true, "icon-allow-overlap": true, "symbol-placement": "line", "symbol-spacing": 0 } "paint": { "text-color": "black" } } ] }
5.6.2.4. 间隔¶
回答 Explore Interval :
geoserver的令人兴奋的使用 fill-pattern 符号通过改变所使用的模式来设置主题。

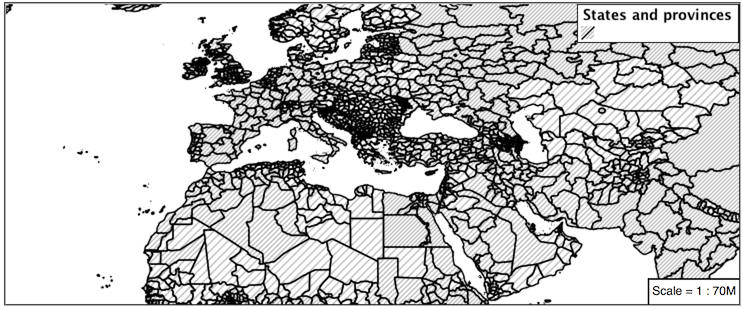

探索: 使用 间隔 功能到主题 数据等级 .
例子:
{ "version": 8, "name": "polygon_example", "sprite": "http://localhost:8080/geoserver/styles/sprites", "layers": [ { "id": "polygon", "source-layer": "ne:states_provinces_shp", "type": "fill", "paint": { "fill-pattern": { "property": "datarank", "type": "interval", "stops": [ [4, "grey_diag8"], [6, "grey_diag16"] ] } } } ] }
5.6.2.5. 晕圈¶
回答 Challenge Halo :
Halo示例将填充颜色和不透明度用于静音Halo,而这提高了可读性,但并未引起标签的注意。
强调的一个常见的设计选择是用对比色勾勒出文本的轮廓。
挑战: 生成一个在黑色文本周围使用白色光环的地图。
下面是一个例子:
{ "version": 8, "name": "polygon_example", "layers": [ { "id": "polygon_fill", "source-layer": "ne:states_provinces_shp", "type": "fill", "paint": { "fill-color": "#7EB5D3", "fill-outline-color": "gray" } }, { "id": "polygon_label", "source-layer": "ne:states_provinces_shp", "type": "symbol", "layout": { "text-field": "{name}", "text-anchor": "center" "text-max-width": 14, "text-font": ["Arial"] }, "paint": { "text-color": "white", "text-halo-color": "black", "text-halo-width": 1 } } ] }
5.6.2.6. 使用多个属性创建主题¶
回答 Challenge Theming using Multiple Attributes :
一个强大的工具正在使用多个属性创建主题。这是一个重要的概念,允许地图阅读器执行“眼球集成”(检测属性值信息之间的相关性)。

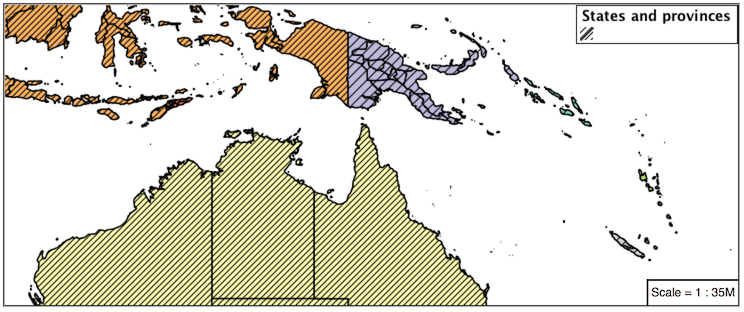

挑战: 结合 地图颜色9 和 数据等级 复制以下地图的示例。
这应该是使用
categorical
示例,以及interval
已提供示例。{ "version": 8, "name": "polygon_example", "sprite": "http://localhost:8080/geoserver/styles/sprites", "layers": [ { "id": "polygon", "source-layer": "ne:states_provinces_shp", "type": "fill", "paint": { "fill-color": { "property": "mapcolor9", "type": "categorical", "stops": [ [1, "#8dd3c7"], [2, "#ffffb3"], [3, "#bebada"], [4, "#fb8072"], [5, "#80b1d3"], [6, "#fdb462"], [7, "#b3de69"], [8, "#fccde5"], [9, "#d9d9d9"] ] }, "fill-outline-color": "gray" } }, { "id": "polygon", "source-layer": "ne:states_provinces_shp", "type": "fill", "paint": { "fill-pattern": { "property": "datarank", "type": "interval", "stops": [ [4, "grey_diag8"], [6, "grey_diag16"] ] } } } ] }
5.6.2.7. Z索引的使用¶
使用多个 层 模拟管柱套管。产生的效果类似于文本光环——在复杂的线条工作周围提供呼吸空间,使其脱颖而出。
挑战: 使用您所知道的LineString呈现顺序来复制以下映射:
这在使用mbstyle时要容易得多,其中z顺序由层控制。
{ "version": 8, "name": "polygon_example", "sprite": "http://localhost:8080/geoserver/styles/sprites", "layers": [ { "id": "polygon_fill", "source-layer": "ne:states_provinces_shp", "type": "fill", "paint": { "fill-color": "lightgrey", } }, { "id": "polygon_pattern", "source-layer": "ne:states_provinces_shp", "type": "fill", "paint": { "fill-pattern": "grey_diag16" } } { "id": "polygon_casing", "source-layer": "ne:states_provinces_shp", "type": "line", "paint": { "line-color": "lightgrey", "line-width": 6 } }, { "id": "polygon_outline", "source-layer": "ne:states_provinces_shp", "type": "line", "paint": { "line-color": "black", "line-width": 1.5 } } ] }
图例图形的结构提供了有关正在进行的操作的指示。
5.6.2.8. 几何位置¶
回答 Challenge Geometry Location :
这个 符号 层可用于渲染任何几何内容。
挑战: 通过使用 符号 层。
这可以通过以下两种方式之一实现:
更改多边形层的关联,例如
ne:states_provinces_shp
指向“示例”并使用“层预览”页。改变 Layer Preview 选项卡到多边形层,例如
ne:states_provinces_shp
.
需要注意的是,每个多边形的质心都被用作一个点位置。
备注
MBStyle中的层与GeoServer中的层不同。地理服务器层是表示地理特征集合的栅格或矢量数据集。MBStyle层是一个样式信息块,类似于SLD符号。
5.6.2.9. 动态符号化¶
回答 Explore Dynamic Symbolization :
icon-image
为动态符号化提供了机会。这是通过使用函数
icon-image
:{ "version": 8, "name": "point_example", "sprite": "http://localhost:8080/geoserver/styles/sprites", "layers": [ { "id": "point_capital", "type": "symbol", "source-layer": "ne:populated_places", "layout": { "icon-image": { "type": "categorical", "property": "FEATURECLA", "default": "grey_circle", "stops": [ ["Admin-0 capital", "star"] ] } } } ] }
挑战: 使用此方法重写 动感造型 例子。
此处提供示例
point_example.json
:
5.6.2.10. 栅格不透明度¶
有一种快速的方法可以使栅格数据透明,栅格 不透明性 属性的工作方式与向量数据相同。栅格作为一个整体将被绘制为部分透明的,允许来自其他层的内容提供上下文。
挑战: 你能举出一个例子来说明这一点吗?
这是很困难的,因为栅格数据通常是作为一个基础地图提供的,图层绘制在顶部。
这里最明显的例子是天气系统的显示,或者模型输出,比如火灾危险。通过绘制具有一定透明度的栅格,可以为上下文显示陆块。
