教程:使用CSS设置数据样式

本教程将展示如何使用CSS来设置层的样式,以及等效的SLD代码。

要使用本教程,您需要 CSS extension 以及 states 图层来自 default GeoServer configuration

为状态层创建样式

默认的SLD文件 states 层如下:

<?xml version="1.0" encoding="ISO-8859-1"?>
<StyledLayerDescriptor
  version="1.0.0"
  xmlns="http://www.opengis.net/sld"
  xmlns:ogc="http://www.opengis.net/ogc"
  xmlns:xlink="http://www.w3.org/1999/xlink"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xmlns:gml="http://www.opengis.net/gml"
  xsi:schemaLocation="http://www.opengis.net/sld
    http://schemas.opengis.net/sld/1.0.0/StyledLayerDescriptor.xsd
">
  <NamedLayer>
    <Name>USA states population</Name>
    <UserStyle>
      <Name>population</Name>
      <Title>Population in the United States</Title>
      <Abstract>A sample filter that filters the United States into three
        categories of population, drawn in different colors</Abstract>
      <FeatureTypeStyle>
        <Rule>
          <Title>&lt; 2M</Title>
          <ogc:Filter>
            <ogc:PropertyIsLessThan>
             <ogc:PropertyName>PERSONS</ogc:PropertyName>
             <ogc:Literal>2000000</ogc:Literal>
            </ogc:PropertyIsLessThan>
          </ogc:Filter>
          <PolygonSymbolizer>
             <Fill>
                <!-- CssParameters allowed are fill (the color) and fill-opacity -->
                <CssParameter name="fill">#4DFF4D</CssParameter>
                <CssParameter name="fill-opacity">0.7</CssParameter>
             </Fill>
          </PolygonSymbolizer>
        </Rule>
        <Rule>
          <Title>2M - 4M</Title>
          <ogc:Filter>
            <ogc:PropertyIsBetween>
              <ogc:PropertyName>PERSONS</ogc:PropertyName>
              <ogc:LowerBoundary>
                <ogc:Literal>2000000</ogc:Literal>
              </ogc:LowerBoundary>
              <ogc:UpperBoundary>
                <ogc:Literal>4000000</ogc:Literal>
              </ogc:UpperBoundary>
            </ogc:PropertyIsBetween>
          </ogc:Filter>
          <PolygonSymbolizer>
             <Fill>
                <!-- CssParameters allowed are fill (the color) and fill-opacity -->
                <CssParameter name="fill">#FF4D4D</CssParameter>
                <CssParameter name="fill-opacity">0.7</CssParameter>
             </Fill>
          </PolygonSymbolizer>
        </Rule>
        <Rule>
          <Title>&gt; 4M</Title>
          <!-- like a linesymbolizer but with a fill too -->
          <ogc:Filter>
            <ogc:PropertyIsGreaterThan>
             <ogc:PropertyName>PERSONS</ogc:PropertyName>
             <ogc:Literal>4000000</ogc:Literal>
            </ogc:PropertyIsGreaterThan>
          </ogc:Filter>
          <PolygonSymbolizer>
             <Fill>
                <!-- CssParameters allowed are fill (the color) and fill-opacity -->
                <CssParameter name="fill">#4D4DFF</CssParameter>
                <CssParameter name="fill-opacity">0.7</CssParameter>
             </Fill>
          </PolygonSymbolizer>
        </Rule>
        <Rule>
          <Title>Boundary</Title>
          <LineSymbolizer>
            <Stroke>
              <CssParameter name="stroke-width">0.2</CssParameter>
            </Stroke>
          </LineSymbolizer>
          <TextSymbolizer>
            <Label>
              <ogc:PropertyName>STATE_ABBR</ogc:PropertyName>
            </Label>
            <Font>
              <CssParameter name="font-family">Times New Roman</CssParameter>
              <CssParameter name="font-style">Normal</CssParameter>
              <CssParameter name="font-size">14</CssParameter>
            </Font>
            <LabelPlacement>
              <PointPlacement>
                <AnchorPoint>
                  <AnchorPointX>0.5</AnchorPointX>
                  <AnchorPointY>0.5</AnchorPointY>
                </AnchorPoint>
              </PointPlacement>
            </LabelPlacement>
          </TextSymbolizer>
        </Rule>
     </FeatureTypeStyle>
    </UserStyle>
    </NamedLayer>
</StyledLayerDescriptor>

现在,让我们从一个完成相同任务的CSS文件开始。

首先,转到样式页并单击 Add a new style 链接以开始新样式。在“新样式”页面中,执行以下操作:

  • 为新样式命名您喜欢的任何样式,例如 csstutorial

  • 选择 CSS 作为格式

  • Generate a default style 下拉选择 Polygon 然后点击 Generate...

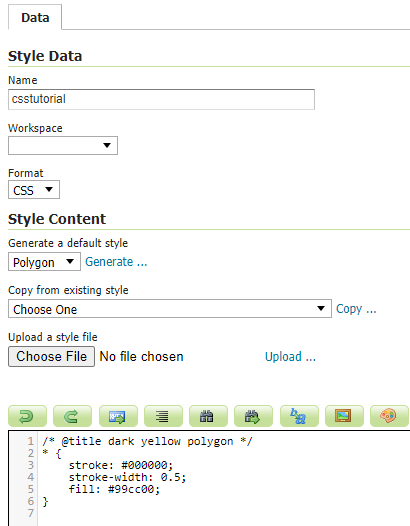

../../_images/tutorial_new_style.png

创建新的CSS样式

这将创建一个示例样式,其源与此样式类似(颜色可能不同)::

/* @title cyan polygon */
* {
    stroke: #000000;
    stroke-width: 0.5;
    fill: #0099cc;
}

这演示了CSS样式的基本元素:

A 选择器 它标识要设置样式的数据的某些部分。这里,选择器是 * 指示所有数据都应使用样式属性。

属性 在花括号内 ({{}} )它指定了受影响的特性应该如何设置样式。属性由冒号分隔的名称/值对组成 (:

我们还可以看到设计多边形样式的基础 (fill )及其大纲 (stroke

参见

这个 筛选器语法属性清单 页面提供有关CSS样式中可用选项的详细信息。

在继续之前,让我们保存样式并使用状态层预览它:

  • 单击“应用”保存层并启用样式预览

  • 现在在“样式编辑器”页面,切换到“图层预览”选项卡,单击“图层预览”链接,然后在对话框中选择“状态”图层。

  • 样式编辑器现在应该显示填充和删除的状态层。

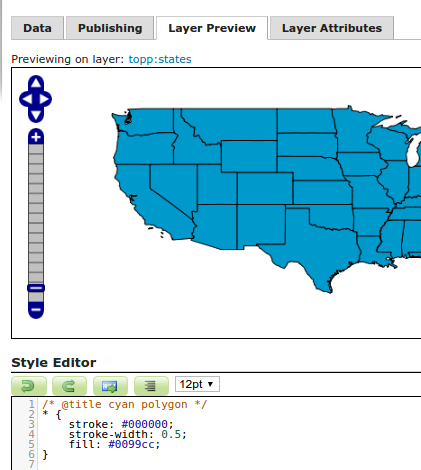

../../_images/tutorial_preview.png

使用状态层预览CSS样式

让我们用这些基础知识开始翻译状态样式。SLD中的第一条规则适用于 PERSONS 字段小于200万::

<Rule>
  <Title>&lt; 2M</Title>
  <ogc:Filter>
    <ogc:PropertyIsLessThan>
     <ogc:PropertyName>PERSONS</ogc:PropertyName>
     <ogc:Literal>2000000</ogc:Literal>
    </ogc:PropertyIsLessThan>
  </ogc:Filter>
  <PolygonSymbolizer>
     <Fill>
        <!-- CssParameters allowed are fill (the color) and fill-opacity -->
        <CssParameter name="fill">#4DFF4D</CssParameter>
        <CssParameter name="fill-opacity">0.7</CssParameter>
     </Fill>
  </PolygonSymbolizer>
</Rule>

使用A CQL -基于选择器,复制cssparameter的名称和值,我们得到:

[PERSONS < 2000000] {
  fill: #4DFF4D;
  fill-opacity: 0.7;
}

对于第二种样式,我们有 PropertyIsBetween 筛选器,它不直接转换为CSS::

<Rule>
  <Title>2M - 4M</Title>
  <ogc:Filter>
    <ogc:PropertyIsBetween>
      <ogc:PropertyName>PERSONS</ogc:PropertyName>
      <ogc:LowerBoundary>
        <ogc:Literal>2000000</ogc:Literal>
      </ogc:LowerBoundary>
      <ogc:UpperBoundary>
        <ogc:Literal>4000000</ogc:Literal>
      </ogc:UpperBoundary>
    </ogc:PropertyIsBetween>
  </ogc:Filter>
  <PolygonSymbolizer>
     <Fill>
        <!-- CssParameters allowed are fill (the color) and fill-opacity -->
        <CssParameter name="fill">#FF4D4D</CssParameter>
        <CssParameter name="fill-opacity">0.7</CssParameter>
     </Fill>
  </PolygonSymbolizer>
</Rule>

然而, PropertyIsBetween 可以很容易地被两个比较选择器的组合替换。在CSS中,只需一个接一个地放置多个选择器,就可以对一个规则应用多个选择器。只有空格分隔的选择器必须全部满足才能应用样式。多个这样的组可以通过用逗号分隔来附加到一个规则 (, )。如果某个功能与某个规则的任何逗号分隔组匹配,则应用该样式。因此,第二条规则的CSS等价物是:

[PERSONS >= 2000000] [PERSONS < 4000000] {
  fill: #FF4D4D;
  fill-opacity: 0.7;
}

第三条规则的处理方式与第一条规则大致相同:

[PERSONS >= 4000000] {
  fill: #4D4DFF;
  fill-opacity: 0.7;
}

第四条也是最后一条规则有点不同。它将标签和大纲应用于所有状态:

<Rule>
  <Title>Boundary</Title>
  <LineSymbolizer>
    <Stroke>
      <CssParameter name="stroke-width">0.2</CssParameter>
    </Stroke>
  </LineSymbolizer>
  <TextSymbolizer>
    <Label>
      <ogc:PropertyName>STATE_ABBR</ogc:PropertyName>
    </Label>
    <Font>
      <CssParameter name="font-family">Times New Roman</CssParameter>
      <CssParameter name="font-style">Normal</CssParameter>
      <CssParameter name="font-size">14</CssParameter>
    </Font>
    <LabelPlacement>
      <PointPlacement>
        <AnchorPoint>
          <AnchorPointX>0.5</AnchorPointX>
          <AnchorPointY>0.5</AnchorPointY>
        </AnchorPoint>
      </PointPlacement>
    </LabelPlacement>
  </TextSymbolizer>
</Rule>

这引入了呈现提取值的思想 (STATE_ABBR )直接进入地图,不同于目前所有的规则。为此,可以使用括在方括号中的cql表达式 ([] )作为CSS属性的值。还需要将包含空白的值括起来,例如 Times New Roman ,单引号或双引号 ("' )。考虑到这些细节,让我们编写规则:

* {
  stroke-width: 0.2;
  label: [STATE_ABBR];
  label-anchor: 0.5 0.5;
  font-family: "Times New Roman";
  font-fill: black;
  font-style: normal;
  font-size: 14;
}

把它们放在一起,你现在应该有一个如下的风格:

[PERSONS < 2000000] {
  fill: #4DFF4D;
  fill-opacity: 0.7;
}

[PERSONS >= 2000000] [PERSONS < 4000000] {
  fill: #FF4D4D;
  fill-opacity: 0.7;
}

[PERSONS >= 4000000] {
  fill: #4D4DFF;
  fill-opacity: 0.7;
}

* {
  stroke-width: 0.2;
  label: [STATE_ABBR];
  label-anchor: 0.5 0.5;
  font-family: "Times New Roman";
  font-fill: black;
  font-style: normal;
  font-size: 14;
}

单击 Apply 用于保存更改的按钮。

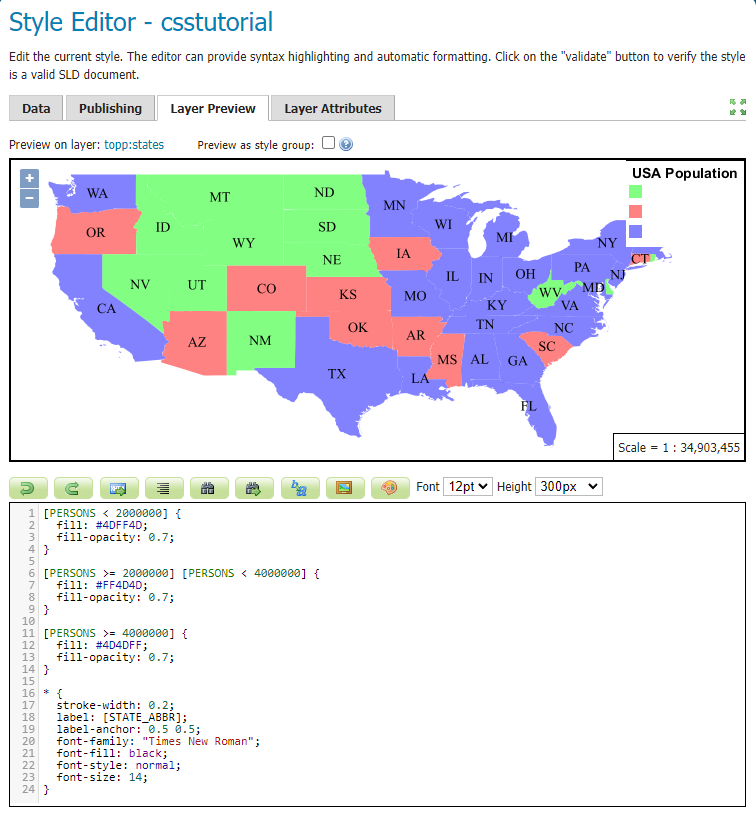

../../_images/tutorial_noborder.png

应用于 states 图层

你会看到边界不见了!在geoserver css模块中,每种符号都有一个“key”属性,用于控制是否应用它。如果没有这些“键”属性,则忽略从属属性。这些“键”属性是:

  • fill ,控制是否应用多边形填充。这指定了用于填充的颜色或图形。

  • ,控制是否应用线条和多边形轮廓笔划。这指定笔划的颜色(或图形填充)。

  • mark ,控制是否绘制点标记。这将标识要使用的已知标记或图像URL。

  • 标签 ,它控制是否在地图上绘制标签。这标识用于标记地图的文本,通常作为CQL表达式。

  • halo-radius ,控制是否在标签周围绘制光环。这指定了这样的光晕应该有多大。

参见

这个 属性清单 有关其他属性的信息。

因为我们没有指定 stroke 颜色,不应用笔划。让我们添加它,替换最后一个规则,使其现在看起来像这样:

* {
  stroke: black;
  stroke-width: 0.2;
  label: [STATE_ABBR];
  label-anchor: 0.5 0.5;
  font-family: "Times New Roman";
  font-fill: black;
  font-style: normal;
  font-size: 14;
}

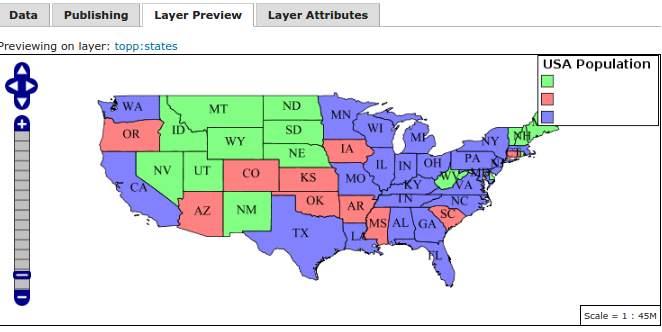

../../_images/tutorial_border.png

添加到样式的边框

改进风格

正在删除重复的属性

我们现在拥有的样式只有23行,比我们开始使用的103行XML有了很大的改进。但是,我们仍在重复 fill-opacity 属性无处不在。

我们可以把它移到 * 把它应用到任何地方。这是因为geoserver css模块模拟 级联 :虽然sld使用“painter's model”独立处理每个规则,但级联样式允许您提供常规样式属性,并仅覆盖特定功能的特定属性。

这使得样式只剩下21行:

[PERSONS < 2000000] {
  fill: #4DFF4D;
}

[PERSONS > 2000000] [PERSONS < 4000000] {
  fill: #FF4D4D;
}

[PERSONS > 4000000] {
  fill: #4D4DFF;
}

* {
  fill-opacity: 0.7;
  stroke-width: 0.2;
  label: [STATE_ABBR];
  label-anchor: 0.5 0.5;
  font-family: "Times New Roman";
  font-fill: black;
  font-style: normal;
  font-size: 14;
}

比例相关样式

这种样式的标签很不错,但在较低的缩放级别,它们看起来有点拥挤。我们可以很容易地将标签移动到一个直到刻度分母低于2000000才会激活的规则。我们确实希望在所有缩放级别上保持笔划和填充不透明度,这样可以将它们与标签属性分开。

在主目录中保留以下属性 (* )规则::

* {
  fill-opacity: 0.7;
  stroke-width: 0.2;
}

删除其余所有内容,将其移动到新规则中:

[@sd < 20M] {
  label: [STATE_ABBR];
  label-anchor: 0.5 0.5;
  font-family: "Times New Roman";
  font-fill: black;
  font-style: normal;
  font-size: 14;
}

设置图例标题

到目前为止,我们还没有为任何样式规则设置标题。这不会在查看地图时造成任何问题,但GeoServer在自动生成图例图形时使用标题。如果没有标题,geoserver将返回名称,在css模块中,这些名称是根据每个规则的筛选器生成的。标题通常不是CSS的一部分,所以geoserver会在每个规则之前在特殊格式的注释中查找它们。我们可以添加这样的标题:

/* @title Population < 2M */
[PERSONS < 2000000] {

  ...

/* @title 2M < Population < 4M */
[PERSONS > 2000000] [PERSONS < 4000000] {

  ...

/* @title Population > 4M */
[PERSONS > 4000000] {

  ...


/* @title Boundaries */
* {

  ...

由于CSS转换为SLD的方式,每个SLD规则都是多个CSS规则的组合。这是通过将标题与单词“with”组合来处理的。如果规则省略了标题,那么它就不会包含在SLD输出中。

最后的CSS应该如下所示:

/* @title Population < 2M */
[PERSONS < 2000000] {
  fill: #4DFF4D;
  fill-opacity: 0.7;
}

/* @title 2M < Population < 4M */
[PERSONS >= 2000000] [PERSONS < 4000000] {
  fill: #FF4D4D;
  fill-opacity: 0.7;
}

/* @title Population > 4M */
[PERSONS >= 4000000] {
  fill: #4D4DFF;
  fill-opacity: 0.7;
}


/* @title Boundaries */
* {
  stroke: black;
  stroke-width: 0.2;
  fill-opacity: 0.7;
}

[@sd < 20M] {
  label: [STATE_ABBR];
  label-anchor: 0.5 0.5;
  font-family: "Times New Roman";
  font-fill: black;
  font-style: normal;
  font-size: 14;
}

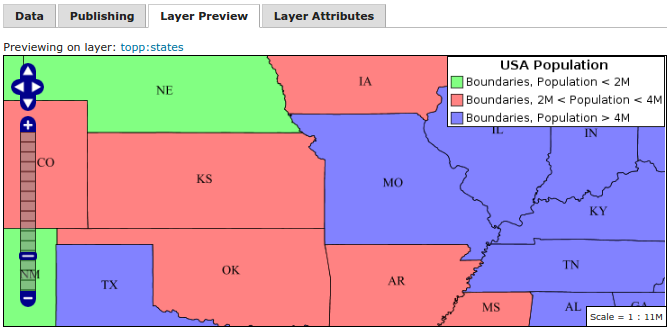

../../_images/tutorial_finalstyle.png

带有规则名称的最终样式

应用规则嵌套

作为最后的变体,可以通过利用规则嵌套使样式更紧凑:

* {
  stroke: black;
  stroke-width: 0.2;
  fill-opacity: 0.7;

  /* @title Population < 2M */
  [PERSONS < 2000000] {
    fill: #4DFF4D;
  };
  /* @title 2M < Population < 4M */
  [PERSONS >= 2000000] [PERSONS < 4000000] {
    fill: #FF4D4D;
  };
  /* @title Population > 4M */
  [PERSONS >= 4000000] {
    fill: #4D4DFF;
  };

  /* Labelling */
  [@sd < 20M] {
    label: [STATE_ABBR];
    label-anchor: 0.5 0.5;
    font-family: "Times New Roman";
    font-fill: black;
    font-style: normal;
    font-size: 14;
  }
}

CSS研讨会

有关更多详细信息,请访问下一节 CSS workshop .此研讨会过去用于课堂设置以教授CSS扩展,并已移植到用户文档中。
