展开无重叠的分段标签

给定由标签图像表示的几个连通分量，这些连通分量可以使用扩展到背景区域 skimage.segmentation.expand_labels() 。与之形成鲜明对比的是 skimage.morphology.dilation() 这种方法不会让连通部件扩展到标签编号较低的相邻连通部件。

import numpy as np
import matplotlib.pyplot as plt

from skimage.filters import sobel
from skimage.measure import label
from skimage.segmentation import watershed, expand_labels
from skimage.color import label2rgb
from skimage import data

coins = data.coins()

# Make segmentation using edge-detection and watershed.
edges = sobel(coins)

# Identify some background and foreground pixels from the intensity values.
# These pixels are used as seeds for watershed.
markers = np.zeros_like(coins)
foreground, background = 1, 2
markers[coins < 30.0] = background
markers[coins > 150.0] = foreground

ws = watershed(edges, markers)
seg1 = label(ws == foreground)

expanded = expand_labels(seg1, distance=10)

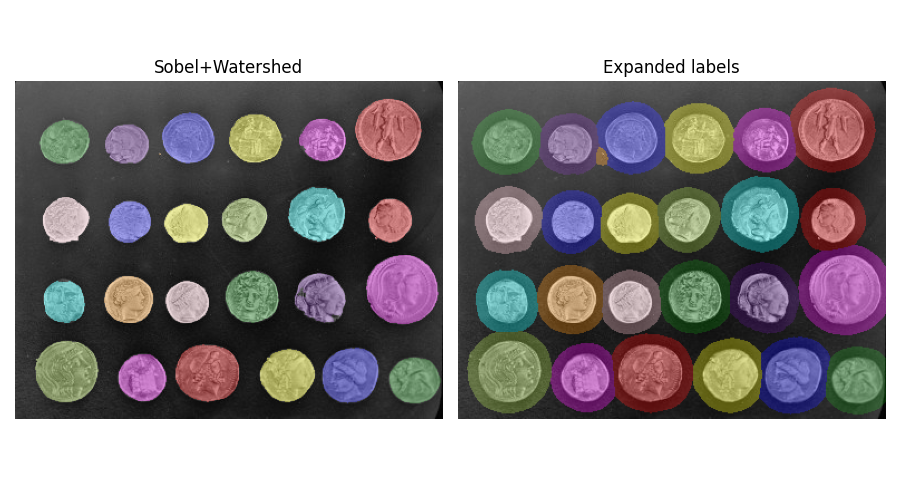

# Show the segmentations.
fig, axes = plt.subplots(nrows=1, ncols=2, figsize=(9, 5),
                         sharex=True, sharey=True)

color1 = label2rgb(seg1, image=coins, bg_label=0)
axes[0].imshow(color1)
axes[0].set_title('Sobel+Watershed')

color2 = label2rgb(expanded, image=coins, bg_label=0)
axes[1].imshow(color2)
axes[1].set_title('Expanded labels')

for a in axes:
    a.axis('off')
fig.tight_layout()
plt.show()
