表面图

在工作表的列或行中排列的数据可以绘制在曲面图中。当您希望在两组数据之间找到最佳组合时，曲面图非常有用。在地形图中，颜色和图案表示值范围相同的区域。

默认情况下，所有曲面图都是三维的。通过设置旋转和透视创建二维线框和轮廓图。

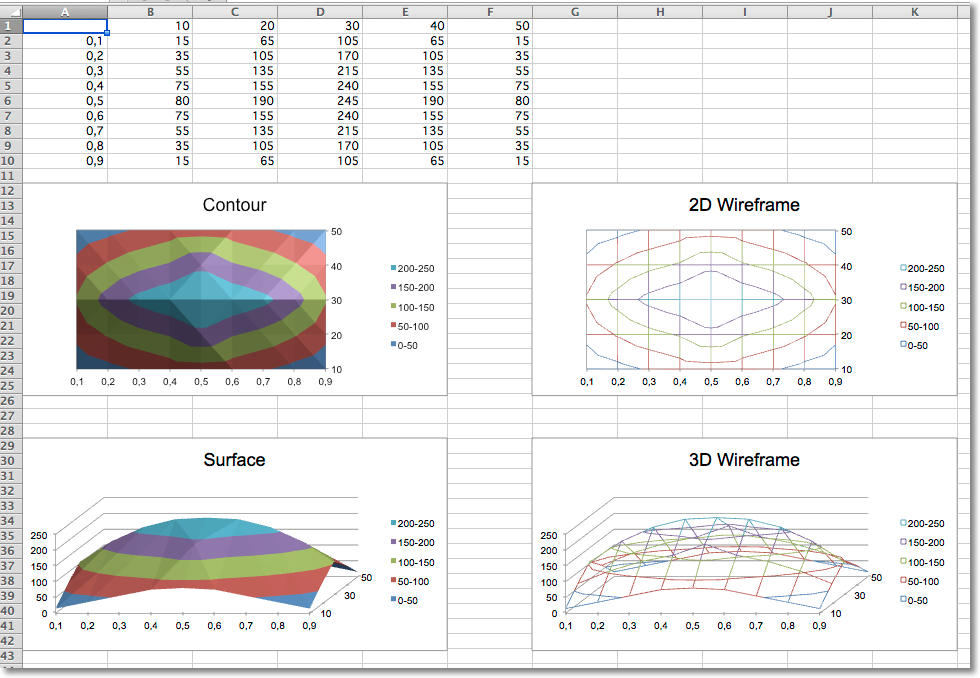

from openpyxl import Workbook
from openpyxl.chart import (
    SurfaceChart,
    SurfaceChart3D,
    Reference,
    Series,
)
from openpyxl.chart.axis import SeriesAxis

wb = Workbook()
ws = wb.active

data = [
    [None, 10, 20, 30, 40, 50,],
    [0.1, 15, 65, 105, 65, 15,],
    [0.2, 35, 105, 170, 105, 35,],
    [0.3, 55, 135, 215, 135, 55,],
    [0.4, 75, 155, 240, 155, 75,],
    [0.5, 80, 190, 245, 190, 80,],
    [0.6, 75, 155, 240, 155, 75,],
    [0.7, 55, 135, 215, 135, 55,],
    [0.8, 35, 105, 170, 105, 35,],
    [0.9, 15, 65, 105, 65, 15],
]

for row in data:
    ws.append(row)


c1 = SurfaceChart()
ref = Reference(ws, min_col=2, max_col=6, min_row=1, max_row=10)
labels = Reference(ws, min_col=1, min_row=2, max_row=10)
c1.add_data(ref, titles_from_data=True)
c1.set_categories(labels)
c1.title = "Contour"

ws.add_chart(c1, "A12")

from copy import deepcopy

# wireframe
c2 = deepcopy(c1)
c2.wireframe = True
c2.title = "2D Wireframe"

ws.add_chart(c2, "G12")

# 3D Surface
c3 = SurfaceChart3D()
c3.add_data(ref, titles_from_data=True)
c3.set_categories(labels)
c3.title = "Surface"

ws.add_chart(c3, "A29")

c4 = deepcopy(c3)
c4.wireframe = True
c4.title = "3D Wireframe"

ws.add_chart(c4, "G29")

wb.save("surface.xlsx")
